12 VOLT REGULATOR

Supply a fixed 12.0 Volt DC to your devices (up to 1 Amp output)

Buy of 12 VOLT REGULATOR.
(1-5: £4.49 each, 5+: £4.29 each)


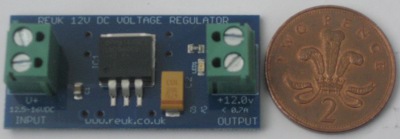

12 VOLT REGULATOR. Supply a fixed 12.0 Volt DC to your devices (up to 1 Amp output)

Additional Information

This is a 12.0V voltage regulator circuit built around the LM2940 Low Dropout Regulator. It is designed to be used in situations where a voltage in excess of 12 Volts could damage a device, but the voltage source (for example a lead acid battery) supplies in excess of 12V.

The regulator will output up to 1 Amp of 12.0 Volts DC from a maximum input voltage of 26 Volts.

This regulator circuit is perfect for LED lighting applications using 12V LED Spotlights. These bulbs have a working voltage of 10.5-13.5 Volts, so if they are directly connected to a 12V-rated lead acid battery, the bulbs could easily be damaged by the 13.5V+ voltage of a fully charged or under-charge battery.

If a switch is to be used - e.g. for lighting - it should be connected into the circuit before the regulator so that the regulator does not draw any power from the battery except for when needed.

Current Limitations

The 1 Amp absolute current limit on this circuit corresponds to powering up to ten 1 Watt LED spotlight bulbs. The fitted heatsink keeps the regulator cool enough (below 40 degrees Celcius) under load with up to 5-6 of our* spotlight bulbs when powered from a 12.5-15V (typical lead acid battery) source.
* Other bulbs may use more power and therefore current than labelled. If you have bulbs from another supplier we recommend you test their power consumption.

If you intend to use this regulator up to its 1 Amp limit or to regulate from a voltage of 15+ Volts, we recommend using a larger heatsink or fan. Contact us directly (email neil@reuk.co.uk) before purchase with details of your exact requirements.

Using the 12 Volt Regulator

Connecting the 12V regulator into a circuit is very easy, as shown in the images below:

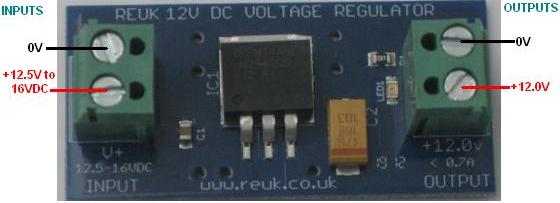

Connecting up the 12 Volt regulator

Using the 12 Volt regulator in a circuit

* Should the input voltage falls below 12 Volts, the low dropout regulator will 'drop' a maximum of 0.5 Volts - for example, an input of 11.6V will generate an output from 11.1-11.6V depending on the current used by the load - 11.6V if the current is small, and 11.1V if the full 1 Amp maximum current is being used.

NEW 12V Regulator with Fitted Fuse


12 Volt DC regulator with 1 Amp fuse fitted

Pictured above is a 12 Volt regulator with a 1 Amp fuse mounted securely to the circuit board. We will soon be adding this product to the REUK Shop (for around £6.29), but if you would like to order one now (supplied with two spare 1 Amp fuses) please email neil@reuk.co.uk. It makes connecting a system a lot easier and tidier than using a standard in-line fuse holder and fuse.

12 Volt regulator with fuse AND switch terminal connections

NEW Similarly we can also incorporate screw-in terminals for a switch in order that the correct BATTERY to FUSE to SWITCH to LOAD connections can be made tidily on one board. This board will be priced at £6.79.
